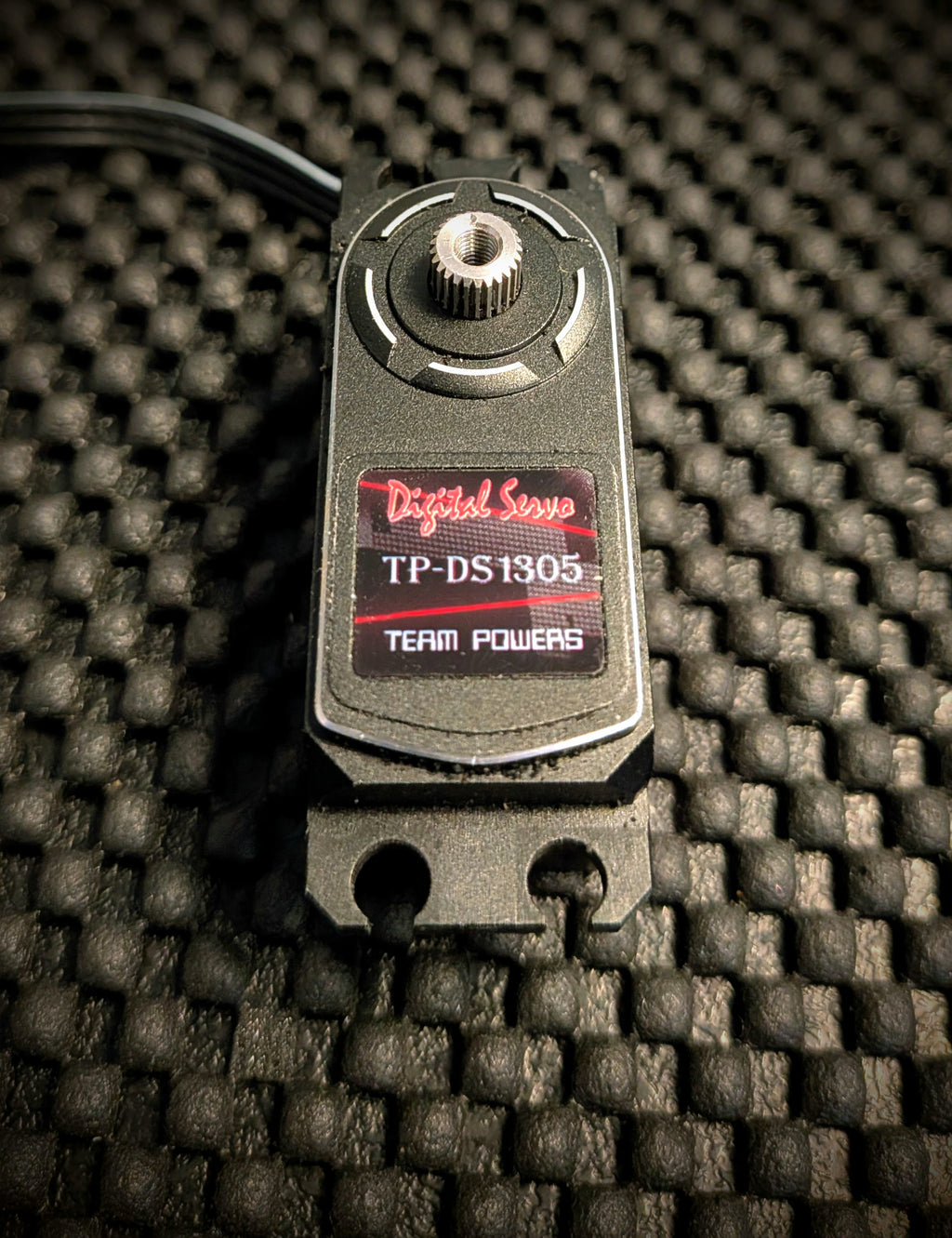

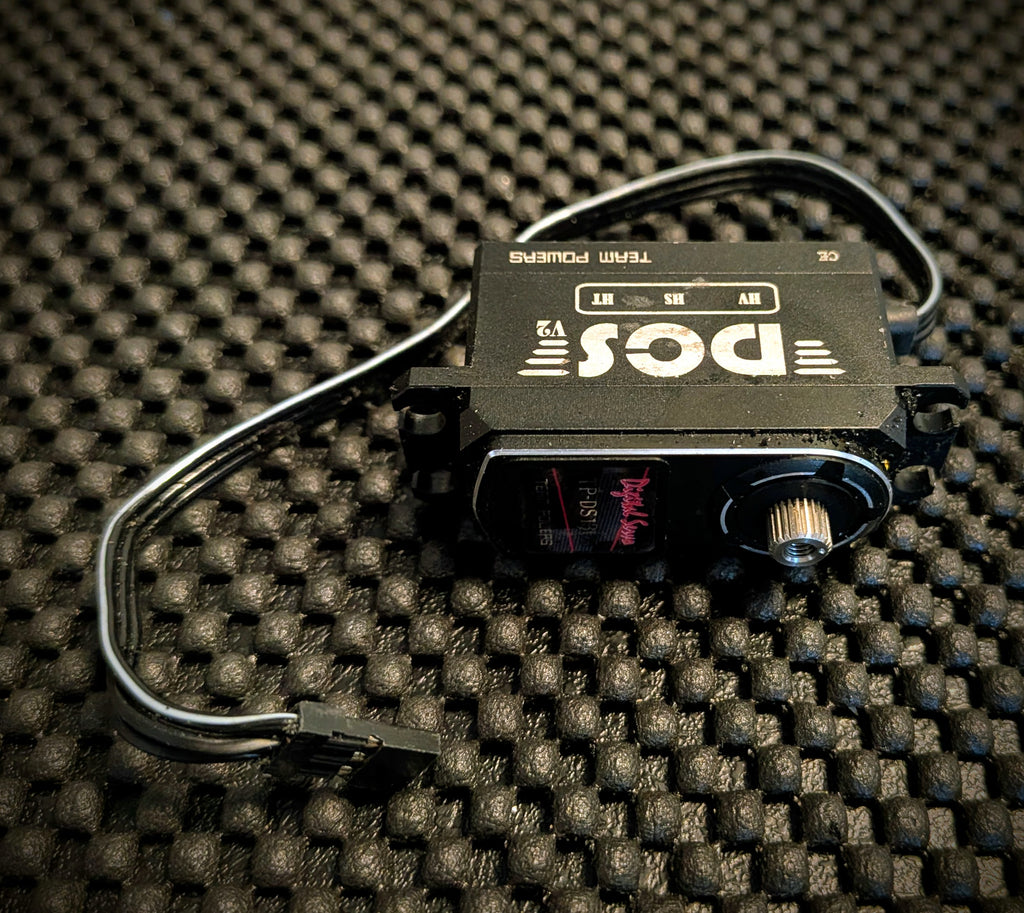

Team Powers DS1305-V2 Digital Coreless Low Profile Servo
£40.00
This item is used but in good condition
Compact Precision Servo for Competitive Builds
The Team Powers DS1305-V2 Digital Coreless Servo offers tight control and a slim footprint for race and sport models. The aluminium casing provides a sturdy shell that keeps weight down while shielding the gearbox and electronics.
Durable Titanium Gears and Responsive Drive
Equipped with a direct drive gear set, the DS1305-V2 reduces backlash for accurate positioning. Titanium metal gears deliver enhanced strength for frequent use, and the 4.8V to 8.4V operating span supports a range of power configurations.
Specifications
- Operating Voltage Range: 4.8V~8.4V
- Gear Material: Titanium Metal
- Weight: ~52g
- Dimensions: 41mm (L) x 26.5mm (W) x 20mm (H)
- Stall Torque: 10kg-cm @6V, 13kg-cm @7.4V, 15kg-cm @8.4V
- Operating Speed (No Load): 0.065 sec/60° @6V, 0.055 sec/60° @7.4V, 0.05 sec/60° @8.4V
